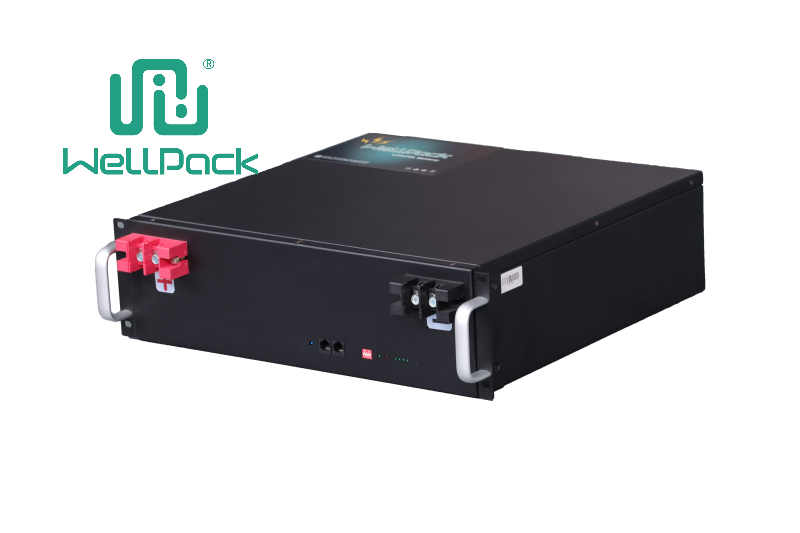

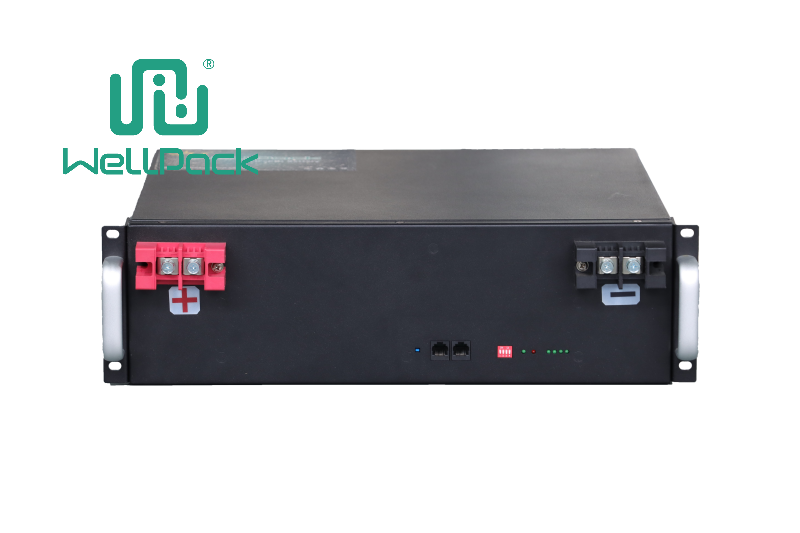

机架式储能电池
机架式储能电池类似于一个微型储能电站，其运行不受城市供电压力影响。在用电低谷时间，家庭储能系统中的电池组可自行充电，以备用电高峰或断电时使用。除用作应急电源外，家庭储能系统也因能均衡用电负荷，从而节省家庭电力开支。
- 磷酸铁锂电池
- 100A
- 469*440*133mm
- 100Ah
- 信息
| Item | General Parameters | Remark |
| Battery Type | Lithium Battery | |
| Battery Material | LiFePO4 | |
| Nominal Voltage | 48V | 15S1P |
| Voltage Range | 45~54V | Operating Voltage Range |
| Charge Limit Voltage | 54.75V | |
| Battery Capacity | 100Ah/48V (4.8KWh) | At 25℃,0.2C Discharging |
| Internal Resistance | ≤80mΩ | at 20±5°C ambient temperature, use an AC internal resistance tester with frequency of 1kHz for measuring after being fully charged. |
| Charge Voltage | 54V±0.5V | |
| Charge Current Limit | 10A | |
| Maximum charging current | 100A | Allows charging with maximum charging current |
| Equalization current | 80mA | |
| Optimal range of charging temperature | 0℃~45℃ | |
| Overcharge protection voltage | 54.75V±0.5V | |
| Discharge termination protection | 37.5V±0.5V | Load voltage when the battery pack stops discharging (voltage value at which discharging reaches discharge cut-off voltage) |
| Maximum discharge current | 100A | Allows charge with maximum discharge current |
| Battery pack series-parallel connection | Supported in parallel, not in series | Up to 16 batteries can be connected in parallel |
| Charge and Discharge Interface | Same Interface | |
| Product Size | 469*440*133mm | |
| Product Weight | 39Kg | |
| Shell | Sheet metal + plastic spraying | |
| Storage Condition | 0~25℃ |
